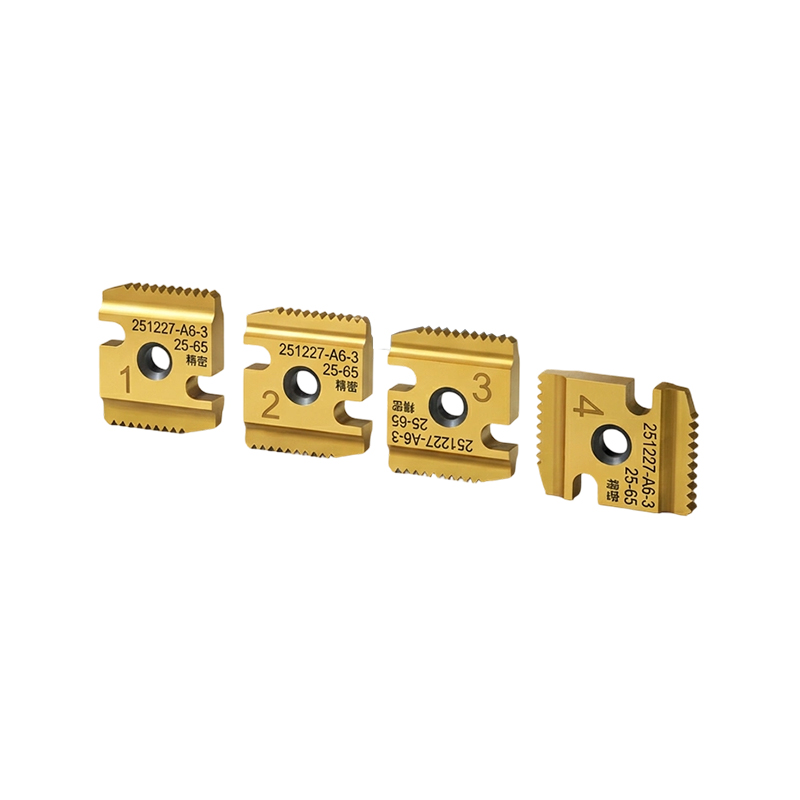

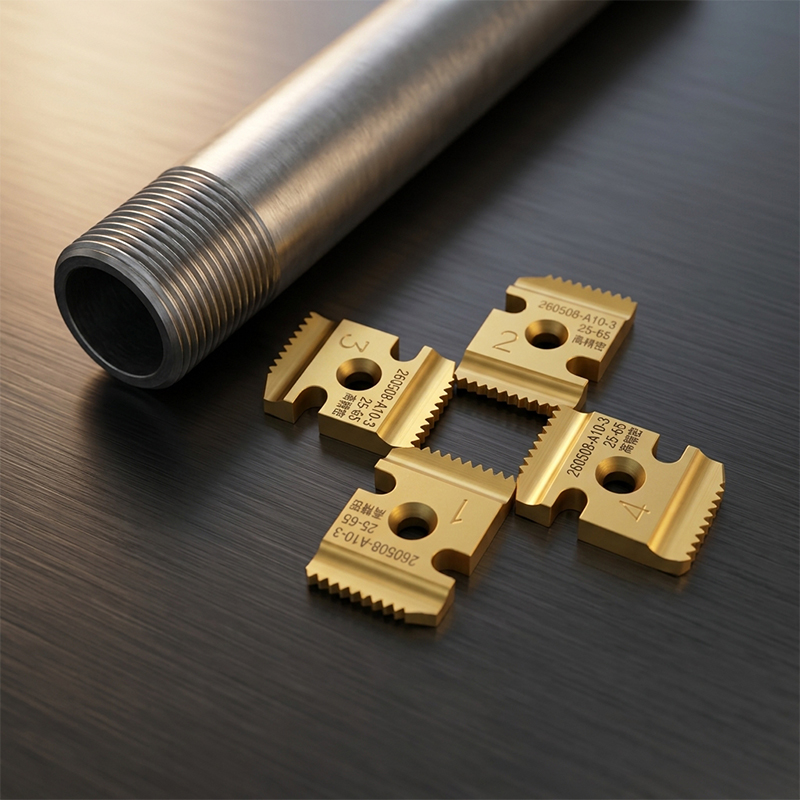

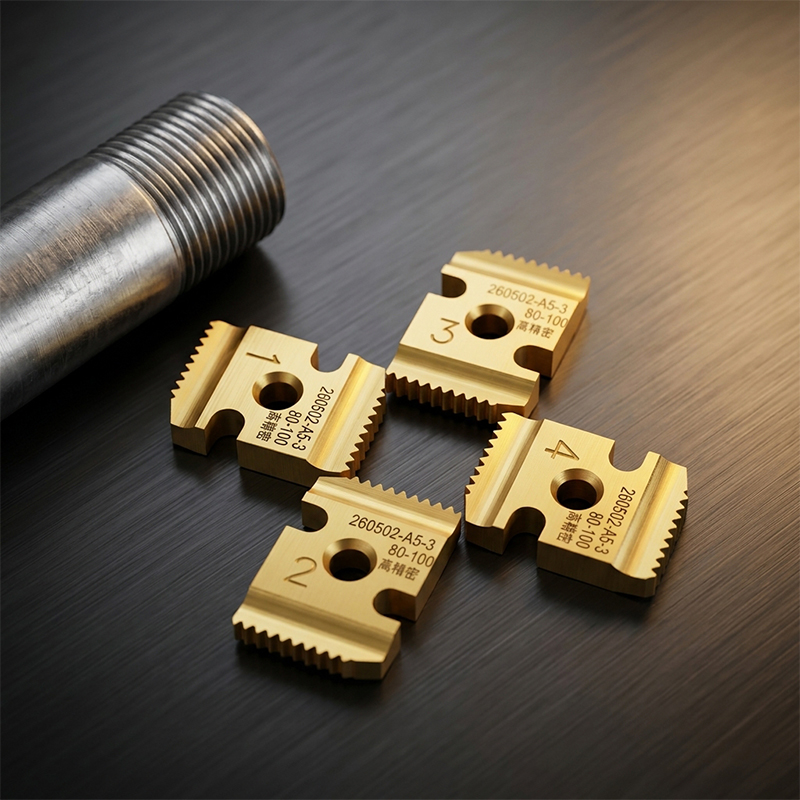

Double-Edged Threading Dies

How Dual-Edge Geometry Redefines Threading Efficiency

The Dual-Edge Core Design distributes cutting forces symmetrically, directly combating the progressive flank wear that plagues single-edge dies. In high‑volume industrial runs, this balanced load prevents localized heat buildup and micro‑chipping, keeping thread profiles consistent far beyond the point where conventional dies would require replacement. At Hangzhou Xinabo, we’ve engineered our Double-Edged Threading Dies so that when one cutting zone eventually shows fatigue, the precision‑ground secondary edge seamlessly takes over the primary work, effectively doubling the usable service interval without any mechanical adjustment.

This translates directly into Industrial-Grade High Precision on every workpiece. Because the die body stays cooler and more stable, the formed thread surface remains smooth and burr‑free, and the pitch diameter stays within ISO tolerance bands even after thousands of cycles. For production managers, the measurable outcome is fewer line stops for tool changes and a sharp reduction in scrap parts caused by drifting thread dimensions.

Specifying the Right Thread Standard Without Guessing

The Multi-Thread Type Support built into our dies—covering BSPT, NPT, and Metric profiles—isn’t just about variety; it’s about eliminating field confusion that leads to mismatched assemblies. Each standard has a distinct flank angle, taper rate, and sealing mechanism, and mixing them can cause leaks or mechanical failure. We’ve seen this lesson firsthand in decades of pipeline work, which is why Hangzhou Xinabo ensures every die is laser‑marked with the exact standard and pitch, so an operator can confirm compatibility at a glance.

When to choose each thread family

• BSPT (British Standard Pipe Taper) – Uses a 55° thread angle and relies on thread interference for sealing. Dominant in European, Asian, and Commonwealth fluid systems. Ideal where frequent assembly/disassembly is expected, because the taper provides a reliable metal‑to‑metal seal with minimal thread compound.
• NPT (National Pipe Taper) – Features a 60° thread angle with a crest‑root truncation that creates a spiral leak path intentionally sealed by compound or tape. Standard across North American fire protection and process piping. Requires controlled make‑up torque to avoid over‑tightening and cracking female fittings.
• Metric (ISO metric parallel/taper) – Defined by ISO 68‑1 profiles, widely used in hydraulic fittings and mechanical parts outside the Americas. The fine‑pitch variants offer superior vibration resistance, making them the default choice for rotating machinery and automotive sub‑assemblies.

Our Double-Edged Threading Dies allow a single intelligent threading machine to switch between these standards in seconds—no need to swap die stocks or re‑zero the machine. By keeping one set of BSPT, one of NPT, and one of Metric dies within arm’s reach, a workshop can process mixed‑standard jobs without the productivity drain of constant retooling.

Achieving True “Drop‑In” Compatibility with Intelligent Threading Machines

Specialized Compatibility is more than a label—it rests on a precision‑machined die body whose outer diameter, keyway location, and axial runout tolerance are controlled to single‑digit micron values. This means our dies seat into the spindle of mainstream intelligent threading equipment with zero angular misalignment. The result is a seamless fit and stable operation that preserves the machine’s automatic feed calibration, eliminates the need for shimming or manual truing, and prevents the micro‑vibrations that erode thread finish over long production runs.

1. The die’s pilot diameter is ground concentric within 0.01 mm, locking into the chuck without radial play.
2. Heat‑treated alloy steel maintains dimensional stability under the thermal cycles of semi‑automatic threading workflows.
3. A universal drive slot pattern mates with both European and Asian machine interfaces without adapters.

Drawing on 20 years of pipeline construction insight, Hangzhou Xinabo designed these Double-Edged Threading Dies to eliminate the on‑site fiddling that steals hours from every project. When a die can be installed and start producing quality threads within moments, the entire workflow—from small maintenance shops to full‑scale prefabrication lines—gains a measurable throughput advantage.

Using the 4‑Piece Set to Streamline Job Site Logistics

The Set Configuration of four dies in one compact kit addresses a practical reality: most medium‑scale industrial threading tasks cycle between a handful of common sizes. By packaging the most‑requested diameters together, we remove the guesswork from inventory management. Each die slot in the case is cut to a specific dimension, so a missing tool is instantly visible during a visual check—a simple but effective layer of mistake‑proofing on busy sites.

The kit’s robust carrying case protects the Industrial-Grade High Precision of each die during transport between workshops, construction sites, and machining centers. Because the foam lining is chemical‑resistant, incidental contact with cutting oil or pipe dope won’t degrade it. This attention to practical durability means that when you open the case at a remote job site, the dies are as clean and ready as they were in the tool crib.
