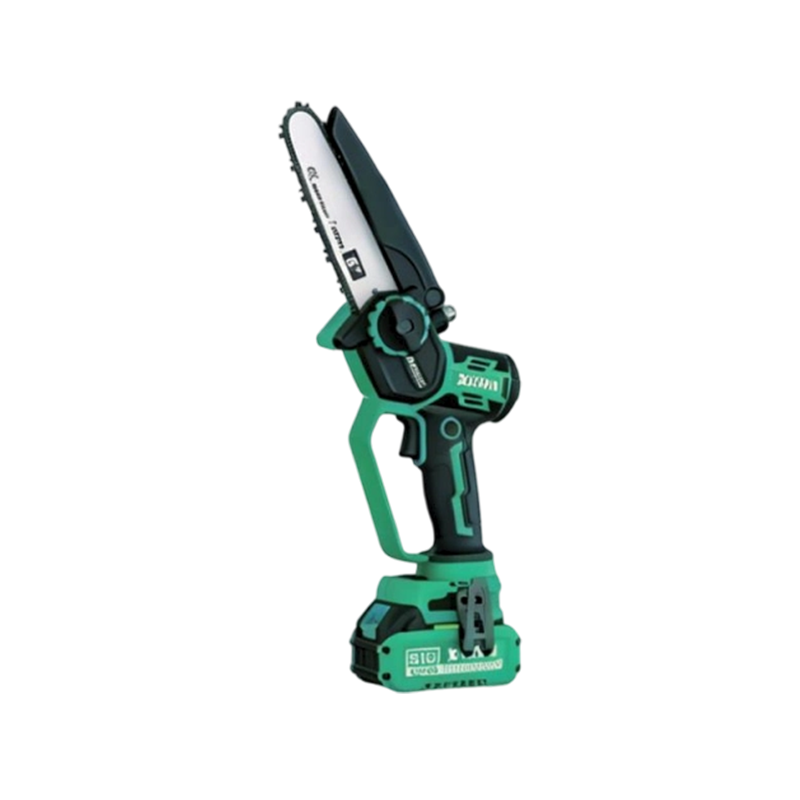

Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd manufactures intelligent pipe fabrication equipment and the Xiaojia cordless power tool range at our plant in Hangzhou, Zhejiang, China. The XJ.206 is the mid-size model in our 16V brushless chainsaw line: a 6-inch guide bar, 150 mm maximum cutting diameter, 450/min chain speed and a two-hand grip layout that keeps both hands on the tool through branch and log cuts. As the XJ.206 16V 6" Brushless Electric Chainsaw — 150mm Max Cutting Diameter, Two-Hand Grip manufacturer, we supply it as a working kit: guide bar, chain, charger, lubricating oil and portable carry bag.
The saw sits between a one-hand pruning unit and a petrol felling saw. It is built for grounds maintenance crews, woodworking shops, campsite and outdoor users cutting medium-diameter timber, where instant starting, no exhaust fumes and low vibration matter as much as cut rate.
- 16V DC brushless motor — no carbon brushes, cooler running, fewer service interventions.
- 6" bar, 150 mm capacity — branch, limb and firewood work in one pass.
- Automatic oiling — continuous chain and bar lubrication while the trigger is held.
- Two-hand grip — controlled two-handed cutting on longer or heavier sections.
The XJ.206 Within Our Brushless Chainsaw Range
Our brushless electric chainsaw range covers two bar sizes on the 16V platform. The XJ.204 16V 4" Brushless Electric Chainsaw is the compact pruning unit for light limbs and yard work; the XJ.206 6" is the larger model for diameters up to 150 mm, with the two-hand grip and the same automatic lubrication and safety package. Sharing the 16V battery system with tools such as the XJ.592 16V Brushless Angle Ratchet Wrench keeps pack and charger inventory common across a maintenance team.
The XJ.206 belongs to the cordless side of our programme, alongside drilling, fastening, grinding, cutting and spraying tools, while our core production remains intelligent threading machines and pipe fabrication and installation equipment for fire protection and construction projects.
Technical Data for the XJ.206
| Parameter |
XJ.206 specification |
What it means on site |
| Rated voltage |
16V DC |
Runs on our 16V lithium-ion battery platform |
| Motor type |
Brushless |
No brush replacement; lower heat build-up under load |
| Guide bar size |
6" |
Defines bar reach and the practical cut width |
| Chain speed |
450/min |
Geared for sustained cutting rather than short bursts |
| Max cutting diameter |
150 mm |
Largest round section cleared in a single pass |
| Lubrication |
Automatic oiling |
Continuous oil feed to chain and bar during the cut |
| Safety features |
Anti-kickback, safety lock, overload protection |
Kickback control, accidental-start prevention, motor protection |
| Standard accessories |
Guide bar, chain, charger, lubricating oil, carry bag |
Ready-to-assemble kit for immediate deployment |
What Each Specification Means in the Cut
150 mm maximum cutting diameter
The 150 mm figure is the largest round section the 6-inch bar can pass in one cut, measured across the log or branch. Larger material is normally handled by rolling the log and taking a second pass, or by moving up to a longer-bar saw. For orchard pruning, limb removal and firewood bucking, 150 mm covers the majority of cuts a crew makes in a day.
Brushless motor and 450/min chain speed
Brushless construction removes carbon brushes and the sparking and brush wear that come with them, so the motor runs cooler and needs less routine attention. The published chain speed of 450/min is set for sustained cutting in wood. Actual cut rate then depends on chain sharpness, wood species, moisture content and the pressure the operator applies.
Automatic oiling and chain life
The oil pump feeds the chain and bar while the trigger is held, keeping the bar groove, drive links and rivets from running dry. Check the reservoir before each session and match oil viscosity to ambient temperature: a thinner oil in cold weather, a tackier chain oil in heat.
Application Fit
Gardening and grounds maintenance
Fruit tree pruning, large branch removal and yard greenery upkeep, where the two-hand grip gives control on heavier limbs.
Woodworking and fabrication
Log cutting, panel blanking and furniture fabrication, including work in workshops where exhaust fumes from a petrol saw are unacceptable.
Outdoor and remote work
Outdoor logging, campsite wood processing and survival gear preparation, where a cordless saw with a carry bag travels easily.
Two-Hand Grip, Kickback Control and Operator Safety
The two-hand grip layout is the main difference between this saw and a compact one-hand pruner. Both hands stay on the tool, the bar is controlled through the cut, and the operator is less exposed to the kickback zone at the top of the bar tip.
- Anti-kickback device — limits the reaction if the bar tip contacts wood or debris.
- Safety lock — prevents accidental trigger actuation during transport and handling.
- Overload protection — cuts motor power when the saw is forced beyond its working range.
- Operator practice — helmet with visor, hearing protection, gloves, leg protection and stable footing under the cut.
Battery, Charging and Shift Planning
Runtime on a 16V pack depends on the diameter being cut, wood hardness, chain condition and ambient temperature, so we plan pack quantity around the shift rather than quoting a single figure. For continuous work, two packs per saw keep one cutting while the other charges; the charger supplied in the kit is matched to the destination plug standard.
- Charge in a dry, ventilated area away from flammable material.
- Store packs partially charged rather than fully drained for long periods.
- Keep spare chains sharpened so the motor is not worked harder than necessary.
Configuration and Supply Scope
| Item |
What we confirm with the order |
| Bar and chain |
6" guide bar with matched chain; spare chain sets added to the kit when required |
| Charger |
Input plug type and voltage for the destination market |
| Battery quantity |
Pack count per kit, or tool-only supply for teams already on the 16V platform |
| Packaging |
Standard carton with carry bag, or distributor packaging to agreed artwork |
| Documentation |
Manual language, packing list and certificate copies issued with the shipment |
Quality Control, Documentation and Acceptance
Production runs from our 10,000 m² factory in Hangzhou with more than 100 staff, a published finished-product rate of 99.9% and 30 patents behind our equipment lines; the company holds the National High-tech Enterprise title. Our certificate file includes attestation of conformity to the Machinery Directive and the Electromagnetic Compatibility Directive, and copies are issued with orders where the destination market requires them.
- Carton and accessory count checked against the packing list on receipt.
- Bar and chain fitted, chain tension set and oil delivery confirmed at the bar.
- Safety lock, anti-kickback function and no-load running checked before release to work.
- Charger input plug and voltage verified against the site supply.
Maintenance and Spare Parts
- Check chain tension before each session; a slack chain wears the bar and sprocket quickly.
- Clean the bar groove and oil holes when the chain is changed.
- Sharpen or replace the chain as soon as cut rate drops or the saw starts pulling to one side.
- Inspect the drive sprocket for wear and dress the bar rails when burrs appear.
- Drain the oil reservoir and clean the saw before long-term storage.
Replacement guide bars, chains, chargers and lubricating oil are supplied as spare parts with the original order or as follow-up shipments, so a fleet can be kept running without sourcing consumables separately.
Information We Use to Configure Your Solution
A proposal for the XJ.206 is built from the working conditions, not from a catalogue number alone. The details below let us confirm the kit, the accessory set and the documentation before the order is placed.
- Wood species and the largest diameter to be cut in normal operation.
- Cut volume per shift and how many operators will share each saw.
- Ambient temperature range, which sets the recommended chain oil viscosity.
- Battery and charger quantity, plus the destination plug standard and supply voltage.
- Packaging format, manual language and any distributor labelling requirements.
- Spare chain, bar and oil quantities to be included in the first shipment.
Frequently Asked Questions
What is the maximum cutting diameter of the XJ.206?
150 mm with the 6-inch guide bar. Larger sections are cut by rolling the log and taking a second pass, or by using a saw with a longer bar.
What does the brushless motor change in daily use?
There are no carbon brushes to wear out or replace, the motor runs cooler under load, and efficiency stays steadier across the pack discharge.
How is the chain lubricated?
An automatic oiling system feeds oil to the bar and chain while the trigger is held. Keep the reservoir filled and select oil viscosity for the ambient temperature.
Which safety devices are fitted?
Anti-kickback protection, a safety lock against accidental starting and overload protection, together with the two-hand grip that keeps both hands on the saw during the cut.
Can we order spare chains, bars and chargers with the saws?
Yes. Spare chains, guide bars, chargers and lubricating oil are added to the order in the quantities you specify, and charger plug type is matched to the destination market.
Is the XJ.206 suitable for professional grounds maintenance?
It is built for medium-diameter branch and log work where a two-hand grip and automatic oiling are needed. For heavy felling or diameters beyond 150 mm, a longer-bar saw is the correct tool.
