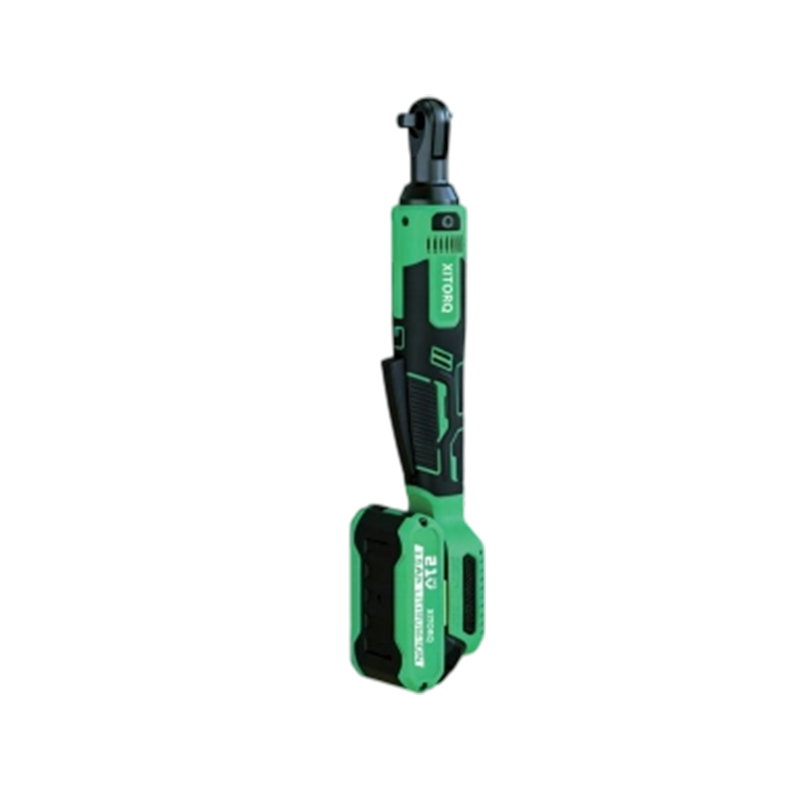

XJ.592 16V Brushless Angle Ratchet Wrench — Compact, 360° Head, 70N·m Torque

Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd designs and builds intelligent pipe threading equipment and the cordless tools that support pipeline, electrical and maintenance work. The XJ.592 16V Brushless Angle Ratchet Wrench — Compact, 360° Head, 70N·m Torque is the compact end of our Xiaojia lithium-ion brushless wrench range: a 16V ratchet with a 1/4" square drive, 70N·m maximum torque and a head that indexes through a full 360°, sized for fastening and removal where a full-size impact wrench cannot reach.

We have manufactured in Hangzhou, China since 2010, and our 10,000 m² factory produces threading machines, pipe fabrication equipment and cordless power tools under one quality system. The XJ.592 is supplied as a working kit — battery, charger and portable carry bag — so a crew can put it into service on delivery.

Where the XJ.592 Fits on Site

The tool is specified around access rather than raw power. A 70N·m ceiling and 500 rpm no-load speed suit small-bolt fastening where the fastener is visible but the tool body is not, and the 1/4" drive keeps the head slim enough to enter panel gaps, cabinet interiors and machine housings.

Specification Meaning at a Glance

Torque figures describe maximum tool output. Where a joint carries a published torque value, final tightening is verified with a calibrated torque wrench; the XJ.592 handles rundown, removal and the fasteners that sit outside that specification.

Angle Head Geometry and Access

The ratchet head rotates 360° relative to the body, so the operator indexes the drive to the fastener instead of forcing a wrist into the gap. Direction changes at the head, which means the tool stays in position between tightening and loosening.

• 1/4" square drive takes standard sockets, extensions and bit adapters already held in a maintenance store.
• Low-profile head enters panel gaps, cabinet interiors and machine frames.
• LED work light removes the need for a second hand holding a torch in unlit enclosures.
• Compact body and moulded grip reduce wrist load during overhead and vertical work.

Brushless Motor, Speed and Torque Control

The brushless motor removes carbon brushes together with the arcing and dust they produce, so the tool runs cooler and carries a shorter service schedule than a brushed ratchet of the same class. The 500 rpm no-load speed is deliberately moderate: it gives the operator time to feel a fastener seat rather than spin a small bolt past its limit.

• 70N·m maximum torque for small-bolt fastening and removal.
• Overload protection cuts drive when resistance climbs beyond the working range.
• Steady speed under load keeps rundown consistent across a batch of identical fittings.
• No brush replacement interval to plan into the maintenance schedule.

Battery Platform and Charging Logistics

The XJ.592 runs on our 16V pack and ships with a charger and carry bag. Our 21V impact wrenches use a different pack, so a fleet running both keeps charging stations and spare packs separated by voltage to avoid a mixed issue at the start of a shift.

• 16V DC platform matched to the compact body and grip.
• Kit content: battery, charger and portable carry bag.
• Charge state is checked at issue; a partly discharged pack shortens usable runtime in the field.
• Packs are stored dry, at moderate temperature and clear of loose metal in the crib.

Quality Control, Demonstration and Handover

Tools are assembled and function-checked before packing, and every kit is issued with its accessory list so the receiving store can match battery, charger and bag against the order line. For teams adopting the tool across several sites, we arrange a live demonstration with a product specialist, and our technical team provides training on the wider Xinabo range on request.

• Functional check of head rotation, forward/reverse action, LED and overload cut-out.
• Kit content verified against the order line before dispatch.
• Parameter sheet and accessory list supplied with the shipment.
• Demonstration and operator briefing available for fleet rollouts.

Maintenance and Spare Parts

Service attention is limited to the battery, charger, switch and head assembly; the brushless motor has no consumable brushes. We hold spare parts for our products and support maintenance through our technical team.

• Wipe the body and keep dust out of the motor intake vents.
• Check the head detent and drive square for wear at each service interval.
• Inspect charger contacts and cable for damage before returning a pack to the rack.
• Replace damaged packs rather than attempting field repair.

The Wider Cordless Range

The XJ.592 sits in a cordless line covering fastening, drilling, cutting, grinding and cable termination. Crews that need more torque for structural bolts move up to the 21V impact wrenches; electrical teams pair the ratchet with hydraulic crimping for terminal work.

Information We Use to Configure Your Solution

A proposal is prepared from the working point rather than from a catalogue number alone. These details let us confirm the model, kit content and accessory set before the order is released.

• Fastener size, thread and target torque for the joint.
• Access envelope: gap width, depth and approach angle to the fastener.
• Duty cycle: rundowns per shift and the longest continuous working period.
• Battery platform already in the fleet and the charger plug standard for the destination market.
• Quantity per site, delivery schedule and packing or labelling requirements.
• Spare battery and charger quantities to be included with the kits.
• Operator briefing or demonstration required before handover.
• Documentation or declaration needed by the receiving country.

Frequently Asked Questions

What torque and drive size does the XJ.592 deliver?

Maximum torque is 70N·m through a 1/4" square drive, with a no-load speed of 500 rpm from a 16V brushless motor. That combination is intended for small-bolt fastening and removal, not for structural bolts.

How does the 360° head help in a confined space?

The head indexes through a full circle relative to the body, so the socket can meet the fastener while the body stays clear of surrounding structure. Forward and reverse are selected at the head with one touch, so the tool does not leave the gap between tightening and loosening.

What is included in the standard kit?

Each XJ.592 ships with a battery, a charger and a portable carry bag. The accessory list travels with the shipment so the receiving store can match the kit against the order line.

Can it replace a full-size impact wrench?

No. The XJ.592 is a compact ratchet for access-limited fastening; where a joint needs several hundred newton-metres, the 21V impact wrenches in our range carry that duty. Many maintenance teams keep both, using the ratchet for trim, cabinets and machine interiors.

Does the brushless motor need brush replacement?

There are no carbon brushes in the motor, so that service item does not exist. Routine attention covers the battery, charger, switch and head assembly, together with keeping the intake vents clear of dust.

Is the XJ.592 suitable for cabinet wiring and valve installation?

Yes. Distribution cabinet wiring, water valve installation and conduit fixing are among the applications the tool is specified for, alongside automotive trim work and internal equipment maintenance. The LED light and compact head are the features that matter most in those positions.
