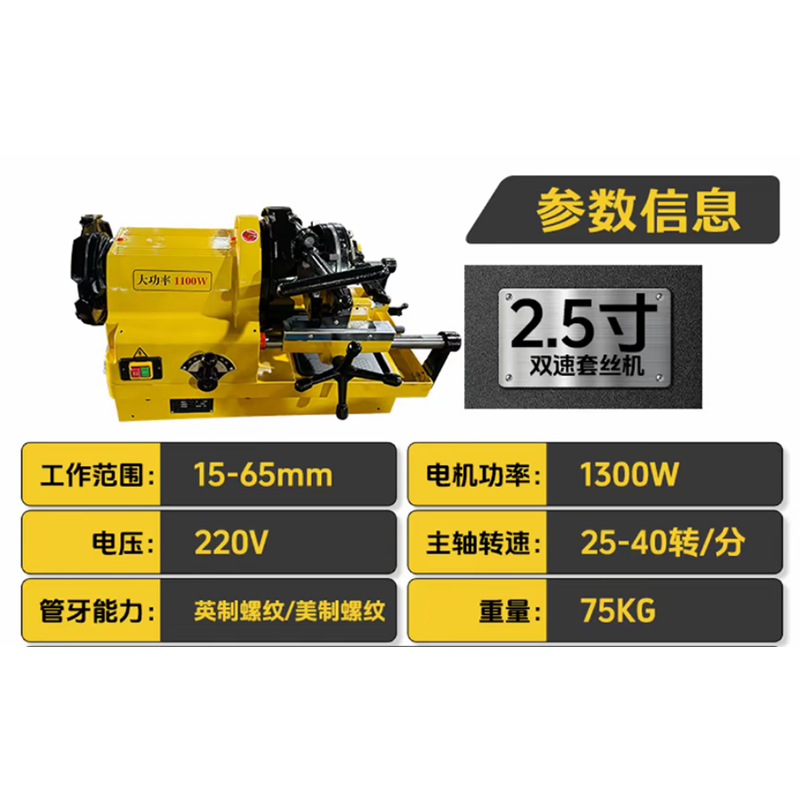

SQ65 2.5-inch 15-65mm dual-speed electric pipe threading machine

Why Dual-Speed Control Matters for Thread Quality

The SQ65 2.5-inch 15-65mm dual-speed electric pipe threading machine gives you a 25/40 RPM dual-speed gearbox, a feature that directly impacts thread finish and tool life. When cutting smaller diameters or working with softer materials, a higher speed reduces cycle time without sacrificing accuracy. For larger pipes or tougher alloys, the lower speed delivers more torque, preventing chatter and uneven threads.

We at Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd designed this dual‑speed system after years of observing field crews struggle with single‑speed machines that either stalled on heavy cuts or left rough surfaces on thin‑wall pipe. Matching speed to the job is not a luxury — it is a practical way to keep every joint within tolerance the first time.

BSPT vs. NPT: Selecting the Correct Thread Standard for Your Site

The SQ65 2.5-inch 15-65mm dual-speed electric pipe threading machine supports both BSPT and NPT threads right out of the box, with dedicated dies included for 1/2″–3/4″, 1″–2″, and 2.5″ pipes. Knowing the differences between these two standards avoids field rejections and rework.

Because the die sets are pre‑matched to the machine’s torque curve, switching from one standard to the other is a matter of replacing the die head — no recalibration is needed. This flexibility keeps your threader working on mixed‑specification projects without extra tooling costs.

Maximizing Die Life Across the 15–65 mm Range

The SQ65 2.5-inch 15-65mm dual-speed electric pipe threading machine includes three dedicated die heads that cover 1/2″–3/4″, 1″–2″, and 2.5″ pipes. Keeping these dies sharp for longer directly lowers your cost per thread. Small, practical habits make a measurable difference:

• Apply high‑quality threading oil generously — it cools the cut and flushes chips away from the die edges.
• For pipes over 50 mm, always use the 25 RPM speed to reduce heat buildup and prevent premature edge rounding.
• Inspect die segments after every 30–40 threads; swap or rotate them at the first sign of dulling, not after threads start failing gauges.
• Keep the machine’s 75 KGS net weight and wide stance fully supported — a rigid setup stops micro‑vibrations that chip die edges.

At Hangzhou Xinabo, we’ve seen how a simple die‑care routine extends service intervals by weeks on busy sites. The integrated die configuration of the SQ65 means you spend less time swapping components and more time producing accurate threads.

Power Supply Stability and Motor Protection on the Job Site

The SQ65 2.5-inch 15-65mm dual-speed electric pipe threading machine draws 1300 W at 220 V (compatible with 50/60 Hz supplies), which is enough to pull peak current on long extension cords. Voltage drop is the hidden enemy of electric threaders: it reduces torque, heats the motor, and leads to inconsistent thread depth.

Follow these site‑proven rules to protect your investment:

1. Use a cord with conductors sized at least 2.5 mm² for runs over 15 metres; for longer distances, move the generator or supply panel closer.
2. Connect to a circuit protected by a Type C circuit breaker to handle the motor’s inrush current without nuisance tripping.
3. Monitor the machine’s built‑in thermal overload indicator — if it triggers, let the motor cool fully before restarting, especially in high‑ambient temperatures.

Our threading machines incorporate intelligent thermal protection that prevents winding damage during prolonged heavy cuts. By pairing the SQ65 with a stable power source, you can run continuous threading cycles in fire protection and construction projects without unexpected downtime. Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd has engineered this reliability into every generation, drawing on more than 20 years of on‑site pipeline experience.
