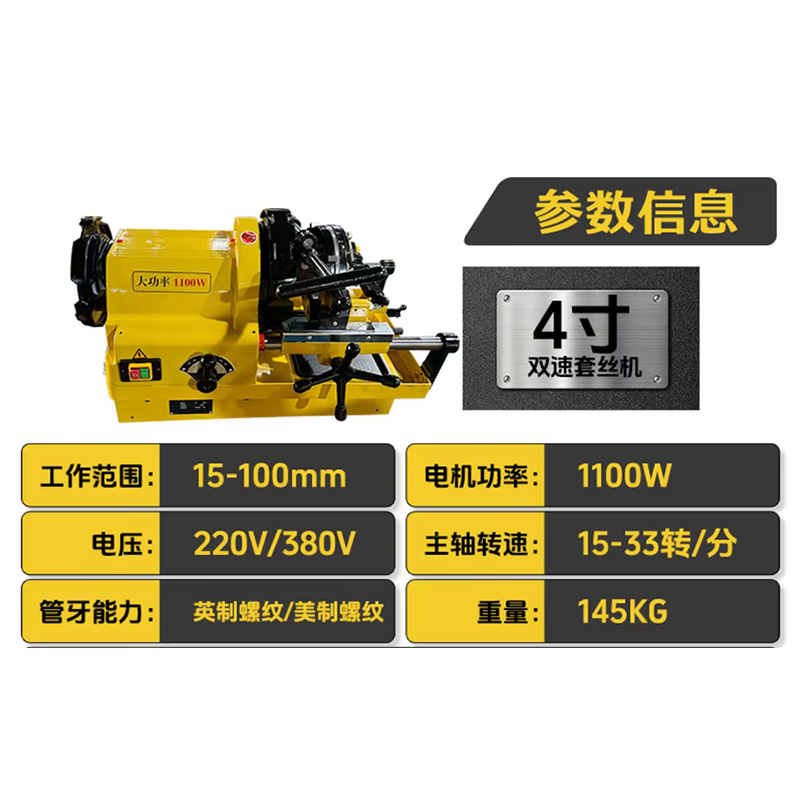

SQ100 4-inch 15-100mm dual-speed electric pipe threading machine

Matching Thread Standards to Project Geography: BSPT vs. NPT

Pipe thread standards are not globally interchangeable, and a mismatch can lead to leakage, joint failure, and costly rework. BSPT (British Standard Pipe Taper) relies on the thread’s interference fit for sealing, often supplemented with a sealant, while NPT (National Pipe Taper) uses a crest-to-root sealing principle. Understanding where each standard is dominant helps avoid inventory mix-ups and ensures code compliance.

At Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd, we engineered the SQ100 4-inch 15-100mm dual-speed electric pipe threading machine with dual thread compatibility to eliminate the need for separate threading heads on multi-standard job sites. This allows a single crew to switch between BSPT and NPT dies without changing the entire setup, cutting down conversion time significantly.

Why Dual-Speed Operation Matters for Pipe Material Versatility

Cutting threads at the wrong speed can rip material, reduce die life, and produce out-of-tolerance threads. A dual-speed threading machine gives the operator control to match rotational speed to pipe diameter, wall thickness, and material hardness. Softer steel pipes and smaller diameters can be threaded efficiently at higher RPM, while harder alloys and large diameters demand low-speed torque to preserve thread finish and tool integrity.

Recommended RPM by Material & Diameter

The SQ100 4-inch 15-100mm dual-speed electric pipe threading machine from Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd gives you that exact control with 15/33 RPM settings. Backed by 12 years of R&D, this dual-speed system lets our customers thread everything from thin-wall conduits to schedule 40 stainless steel without sacrificing precision or overworking the dies.

Full-Range Die Sets: Eliminating Gaps in Production Capacity

Many threading packages ship with only the most commonly used die heads, leaving contractors scrambling when a 2.5″ or 4″ line appears in the schedule. A missing die set can halt an entire crew while a new head is sourced, turning a routine task into a critical-path delay. Choosing a machine that arrives ready for the full working range protects both timelines and profit margins.

Die Set Configuration Delivered with the Machine

We at Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd draw on our founder’s 20 years of pipeline construction experience to pre-configure the SQ100 4-inch 15-100mm dual-speed electric pipe threading machine with all three die sets. This means no hidden procurement steps – you can begin threading 1/2″ to 4″ pipes right out of the crate, keeping your fire protection and plumbing projects moving without interruption.

Power Supply Planning: Avoiding Tripped Breakers on the Job Site

Threading machines with induction motors draw high inrush current at startup, and under-specifying the circuit can result in frequent breaker trips, voltage drop, and motor overheating. Properly planning the electrical infrastructure – whether connecting to mains or running off a generator – ensures consistent threading torque and prolongs motor life.

Circuit Sizing for the SQ100’s 1100W Motor

When running on a generator, select a unit with a continuous output at least 2.5 times the rated motor power to handle inrush without sagging. The SQ100 4-inch 15-100mm dual-speed electric pipe threading machine is rated for 220/380V, 50/60Hz and 1100W, making it compatible with most commercial and temporary site power systems. As a National High-tech Enterprise, Hangzhou Xinabo Intelligent Electromechanical Technology Co., Ltd designs the electrical system to deliver stable power output even under continuous heavy-duty cycling. Combined with the machine’s 145KGS heavy-duty body, this reduces vibration and helps maintain thread accuracy over long production runs.
